Problem statement

For example this achievement:

How would you implement this?

void GameActor::Die()
{
  PlayDieSound();
  PlayDieAnim();

  if(NobodyDiedYet())
    UnlockFirstBloodAchievement();

  FadeOut();
}

Problem statement

Or, even worse:

Going Down? is an achievement which is completed by falling 65 yards without dying. You have to end the fall on a "hard surface".

Goal is again: no tight coupling.

Remember: no coupling

Observer

Notify interested parties that a certain event took place. They have to decide what to do with that.

In our example we notify interested parties that a certain actor in the game died:

void GameActor::Die()
{
  PlayDieSound();
  PlayDieAnim();

  NotifyObservers(GameEvent::ActorDied);

  FadeOut();
}

These interested parties are called "observers" or "event handlers". In our example they implement an interface like this:

class Observer
{
public:
  virtual ~Observer() = default;
  virtual void Notify(Event event, GameActor* actor) = 0;
}

Observer

An achievement system will typically be an observer. It should not interfere with the game code at all.

class Achievement : public Observer
{
public:
  void Notify(Event event, GameActor* actor) override
  {
    switch(event) {
      case GameEvent::ActorDied:
        if(CheckIfNobodyElseDiedYet(actor)) {
          Unlock(Achievement::FirstBlood);
        }
        break;
      case GameEvent::ActorFell:
        // etc...
    }
  }

private:
  void Unlock(Achievement achievement) {
    // code to unlock an achievement...
  }
}

Subject

The observed class gets some extra state – it needs to track who’s observing (but not what!). This observed class is called the subject.

class GameActor
{
public:
  void AddObserver(Observer* observer) {
    // code to add an observer
  }
  void RemoveObserver(Observer* observer) {
    // code to remove an observer
  }

protected:
  void NotifyObservers(Event event) {
    for(auto observer : m_observers)
      observer->Notify(event, this);
  }

private:
  std::vector<Observer*> m_observers;
}

Considerations

• The observers in the subject state: can we afford the extra memory?

  • Should they be kept in an extra buffer as in the example?

• When we delete the subject: what do we do with the observers?

  • Nothing?
  • Delete them?
  • Notify them?
  • In GC languages this is certainly an issue!

• When we Notify the observers, what data do we send them?

  • Nothing – they can just get the data (= pull model)
  • Everything = push model
  • Only the altered state

Implementations

To alleviate the memory cost, you could keep a pointer to a Subject class

class GameActor
{
public:
  void Die() {
    PlayDieSound();
    PlayDieAnim();
    m_actorDiedEvent->NotifyObservers();
    FadeOut();
  }

private:
  std::unique_ptr<Subject> m_actorDiedEvent;
}

• This is exactly what events are in C#
• This is exactly what UnityEvents are in Unity
• This is exactly what multicast delegates are in Unreal
• Java has a similar system and even an Observer and Observable class.

Java

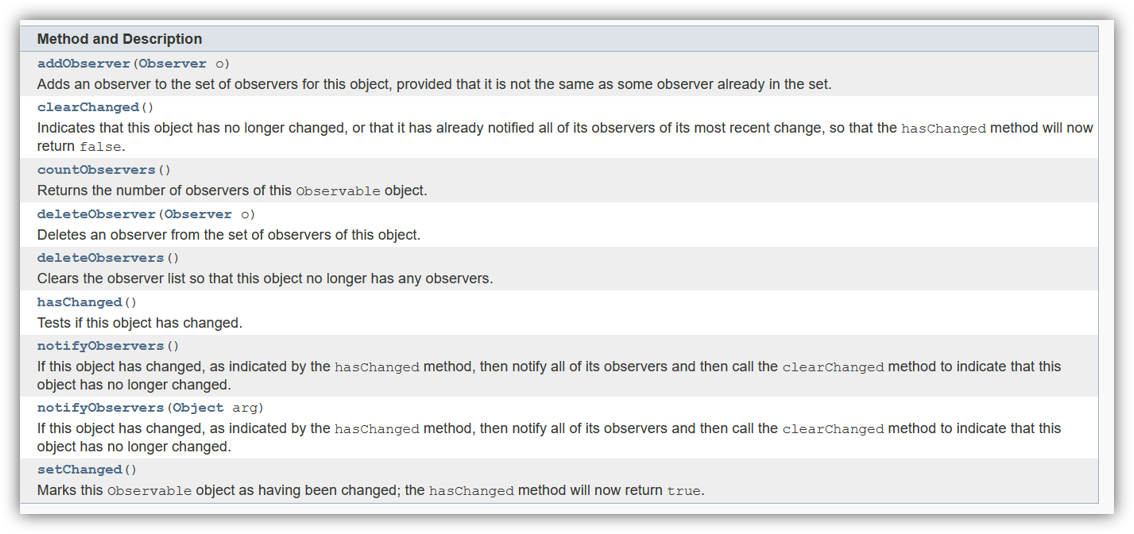

In java a subject class can inherit from “Observable”

_{https://docs.oracle.com/javase/7/docs/api/java/util/Observable.html}

Java

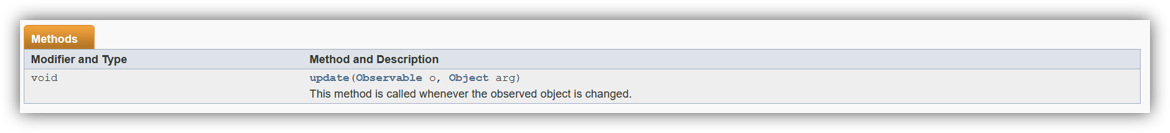

And the Observer implements the interface "Observer"

_{https://docs.oracle.com/javase/7/docs/api/java/util/Observer.html}

This may suffer from the lapsed listener problem.

In C++, where we have no GC we can make use of shared and weak pointers to avoid this issue, or use the destructor to unsubscribe.

Unreal

In Unreal you'd add an event (which is a multicast delegate) in your header file:

public:
  DECLARE_MULTICAST_DELEGATE(FMyEvent)
  FMyEvent& OnSwitched() { return SwitchedEvent; }
private:
  FMyEvent SwitchedEvent;

Which you then can broadcast

void AMyActor::MyFunction()
{
    SwitchedEvent.Broadcast();
}

And subscribe to

Actor->OnSwitched().AddUFunction(this, "ToggleDoor");

_{https://docs.unrealengine.com/5.3/en-US/multicast-delegates-in-unreal-engine/}

Implementations

It’s often not interesting or possible to know the source of an event.

• If there are many actors and you need to know if one died but you don’t care which one
• You don’t want to couple the observer to the subject
• Or the same event can be issued by multiple subjects
  • For example, “DialogEnded” can be issued by all dialogs – do you want to track them all?

In that case: use an event queue / message queue instead.

Event queue

We've already seen one:

bool dae::InputManager::ProcessInput()
{
  SDL_Event e;
  while (SDL_PollEvent(&e)) {
    if (e.type == SDL_QUIT) {
      return false;
    }
    if (e.type == SDL_KEYDOWN) {

    }
    if (e.type == SDL_MOUSEBUTTONDOWN) {

    }
    //process event for IMGUI
    ImGui_ImplSDL2_ProcessEvent(&e);
  }
}

Event queue

Observer decouples the sender from the receiver

• Sender does not know who’s listening
• But the observer knows who it is listening to

Event Queue also decouples the receiver from the sender

• Sender does not know who’s listening
• Receiver does not need to know who issued the event/message
• Receiver doesn't have to handle the message/request immediatly

Unsurprisingly, this works with a queue

• (ideally implemented as a ring buffer)

Usage example

When can we use this? For example in our GameActor::Die function we needed to play a sound. That function could call this function:

void PlaySound(SoundId id, int volume)
{
  auto sound = LoadSound(id);
  int channel = FindOpenChannel();
  if(channel == -1) return;
  StartPlayingSound(sound, channel, volume);
}

This has 3 issues:

Usage example

When can we use this? For example in our GameActor::Die function we needed to play a sound. That function could call this function:

void PlaySound(SoundId id, int volume)
{
  auto sound = LoadSound(id);
  int channel = FindOpenChannel();
  if(channel == -1) return;
  StartPlayingSound(sound, channel, volume);
}

This has 3 issues:

1. The call is blocking/synchronous and can take a while
2. The call is not thread safe
3. The call is executed by the wrong thread.

So instead we could implement an event queue in the Audio API, that will process audio play requests on a separate thread.

Another example (C#)

Messenger.Broadcast(Messages.DialogStarted, new DialogArgs {
  dialogId = DialogueManager.instance.LastConversationID,
  title = DialogueManager.instance.lastConversationStarted
});

private void Start()
{
  _fpController = GetComponent<FPController>();
  Messenger.AddListener<DialogArgs>(Messages.DialogStarted, OnDialogStarted);
  Messenger.AddListener<DialogArgs>(Messages.DialogEnded, OnDialogEnded);
}

private void OnDialogStarted(DialogArgs args)
{
  bool rileyWalks = DialogueLua.GetActorField("Riley", "CanWalk").AsBool;
  if (!rileyWalks) {
      _fpController.DisableWalking();
  }
}

Another example (C++)

void dae::GameOverChecker::DisplayGameOver(const std::string& text) {
  EventManager::GetInstance().SendEvent(GameOverEventID);
  auto textComponent = GetOwner()->GetComponent<TextComponent>();
  textComponent->SetText(text, true);
  SetEnabled(false);
}

void dae::Ghost::Init() {
  EventManager::GetInstance().AttachEvent(GameOverEventID, handler);
  EventManager::GetInstance().AttachEvent(BoostStartEventID, handler);
  EventManager::GetInstance().AttachEvent(BoostEndEventID, handler);
}

void dae::Ghost::HandleEvent(const Event* pEvent) {
  switch(pEvent->GetID())
  {
  case GameOverEventID:
    ChangeToState(std::make_unique<GameOverState>(this));
    break;
  case BoostStartEventID:
    // etc...
  }
}

Considerations

• Central Event Queues (like my Messenger system) are Global Variables
• What happens with events that became obsolete?
• Infinite loops
• One to One, One to Many, Many to One, Many to Many?
  • Many to One
    • like with the audio
  • xx to Many
    • All listeners get the event/message?
    • Or only the first? Like a worker that takes the next task from a queue?
  • One to xx
    • Observer pattern
• What about ownership of the objects in the queue?

Event Id

struct EventArg{};

struct Event {
  const std::string id;

  static const uint8_t MAX_ARGS = 8;
  uint8_t nbArgs;
  EventArg args[MAX_ARGS];

  explicit Event(const char* _id) : id{_id} {}
};

Event e("PlayerDied");

if(e.id == "PlayerDied") {
  // handle player death event
}

Event Id

struct EventArg{};

enum EventId {
  LEVEL_STARTED,
  BOMB_EXPLODED,
  PLAYER_DIED,
  //...
};

struct Event {
  const EventId id;

  static const uint8_t MAX_ARGS = 8;
  uint8_t nbArgs;
  EventArg args[MAX_ARGS];

  explicit Event(EventId _id) : id{_id} {}
}

Event e(PLAYER_DIED);

if(e.id == PLAYER_DIED) {
  // handle player death event
}

Event Id

struct EventArg{};

enum class EventId {
  LEVEL_STARTED,
  BOMB_EXPLODED,
  PLAYER_DIED,
  //...
};

struct Event {
  const EventId id;

  static const uint8_t MAX_ARGS = 8;
  uint8_t nbArgs;
  EventArg args[MAX_ARGS];

  explicit Event(EventId _id) : id{_id} {}
}

Event e(EventId::PLAYER_DIED);

if(e.id == EventId::PLAYER_DIED) {
  // handle player death event
}

Event Id

• With strings
  • Id's don't need to be known in advance
  • String comparisons
• With a scoped enum
  • Fast comparison/indexing
  • All events are declared in one place
  • Can’t be extended

Applicable for small projects where either perfomance or extendability are not that important.

Any other options?

Event Id

We could make use of an SDBM hash

unsigned int sdbm_hash(const char *str) {
    unsigned int hash = 0;
    int c;

    while ((c = *str++)) {
        hash = c + (hash << 6) + (hash << 16) - hash;
    }

    return hash;
}

This function generates a simple (non-secure) hash of a given string in O(n) time.

Instead of EventId as a string or an enum we simply use an unsigned int and we generate id's with text:

Event e(sdbm_hash("PlayerDied"));

But what is the downside now?

_{http://www.cse.yorku.ca/~oz/hash.html}

Event Id

template <int length> struct sdbm_hash
{
    consteval static unsigned int _calculate(const char* const text, unsigned int& value) {
        const unsigned int character = sdbm_hash<length - 1>::_calculate(text, value);
        value = character + (value << 6) + (value << 16) - value;
        return text[length - 1];
    }

    consteval static unsigned int calculate(const char* const text) {
        unsigned int value = 0;
        const auto character = _calculate(text, value);
        return character + (value << 6) + (value << 16) - value;
    }
};

template <> struct sdbm_hash<1> {
    consteval static int _calculate(const char* const text, unsigned int& ) { return text[0]; }
};

template <size_t N> consteval unsigned int make_sdbm_hash(const char (&text)[N]) {
    return sdbm_hash<N - 1>::calculate(text);
}

_{Inspired by: "Learn C++ For Game Development"}

Event Id

And now we can write:

struct EventArg{};

using EventId = unsigned int;

struct Event {
  const EventId id;

  static const uint8_t MAX_ARGS = 8;
  uint8_t nbArgs;
  EventArg args[MAX_ARGS];

  explicit Event(EventId _id) : id{_id} {}
}

Event e(make_sdbm_hash("PlayerDied"));

if(e.id == make_sdbm_hash("PlayerDied")) {
  // handle player death event
}
