Software design what patterns?

Software design patterns are blueprints of possible solutions to common problems

They are hints to how you can solve a particular problem

They're only that, they're no law

Different contexts call for different solutions

Language agnostic

Gang of four

Game Programming Patterns

• More recent and applied to game programming

• Notice "programming" patterns

• Written by Robert Nystrom

  • Software engineer @ Google
  • Lead software engineer @ EA
    • Superman returns
    • Madden NFL
    • NASCAR
  • https://journal.stuffwithstuff.com

• http://gameprogrammingpatterns.com

Game loop

int APIENTRY wWinMain(_In_ HINSTANCE hInstance,
                      _In_opt_ HINSTANCE hPrevInstance,
                      _In_ LPWSTR    lpCmdLine,
                      _In_ int       nCmdShow)
{
    UNREFERENCED_PARAMETER(hPrevInstance);
    UNREFERENCED_PARAMETER(lpCmdLine);
    LoadStringW(hInstance, IDS_APP_TITLE, szTitle, MAX_LOADSTRING);
    LoadStringW(hInstance, IDC_TESTTEMP, szWindowClass, MAX_LOADSTRING);
    MyRegisterClass(hInstance);
    if (!InitInstance (hInstance, nCmdShow)) {
        return FALSE;
    }
    HACCEL hAccelTable = LoadAccelerators(hInstance, MAKEINTRESOURCE(IDC_TESTTEMP));
    MSG msg;

    while (GetMessage(&msg, nullptr, 0, 0)) {
        if (!TranslateAccelerator(msg.hwnd, hAccelTable, &msg)) {
            TranslateMessage(&msg);
            DispatchMessage(&msg);
        }
    }
    return (int) msg.wParam;
}

Game loop

Probably the simplest or most obvious pattern there is, yet it's tricky to get it right.

while(true)
{
  processInput();
  update();
  render();
}

What are we missing here?

Game loop

Indeed we need to exit somehow:

bool do_continue = true;
while(do_continue)
{
  do_continue = process_input();
  update();
  render();
}

In the browser?

This won't work in the browser

bool do_continue = true;
while(do_continue)
{
  do_continue = process_input();
  update();
  render();
}

Via emscripten we can compile our c++ programs to webassembly. We can't maintain our infinite loop however, we need to provide a callback:

void RunOneFrame()
{
  do_continue = process_input();
  update();
  render();
}

emscripten_set_main_loop(&RunOneFrame, 0, true);

_{https://www.jamesfmackenzie.com/howto/getting-started-with-webassembly-part-3-emscripten-loops/}

On the NES

Remember this from "Retro console & emulator programming"?

_{Cruise, T. (2024). Classic game programming on the NES: Make Your Own Retro Video Game.}

Turbo speed!

Don't go too fast

bool do_continue = true;
while (do_continue)
{
  const auto start = high_resolution_clock::now();

  do_continue = process_input();
  update();
  render();

  const auto sleep_time = start + milliseconds(ms_per_frame) - high_resolution_clock::now();

  this_thread::sleep_for(sleep_time);
}

What else goes wrong here?

Adapt to the actual time

bool do_continue = true;
auto last_time = high_resolution_clock::now();
while (do_continue)
{
  const auto current_time = high_resolution_clock::now();
  const float delta_time = duration<float>(current_time – last_time).count();
  last_time = current_time;

  do_continue = process_input();
  update(delta_time);
  render();

  const auto sleep_time = current_time + milliseconds(ms_per_frame) - high_resolution_clock::now();

  this_thread::sleep_for(sleep_time);
}

Catch up in fixed steps

bool do_continue = true;
auto last_time = high_resolution_clock::now();
float lag = 0.0f;
while (do_continue)
{
  const auto current_time = high_resolution_clock::now();
  const float delta_time = duration<float>(current_time – last_time).count();
  last_time = current_time;
  lag += delta_time;

  do_continue = process_input();
  while(lag >= fixed_time_step)
  {
    fixed_update(fixed_time_step);
    lag -= fixed_time_step;
  }
  update(delta_time);
  render();

  const auto sleep_time = current_time + milliseconds(ms_per_frame) - high_resolution_clock::now();

  this_thread::sleep_for(sleep_time);
}

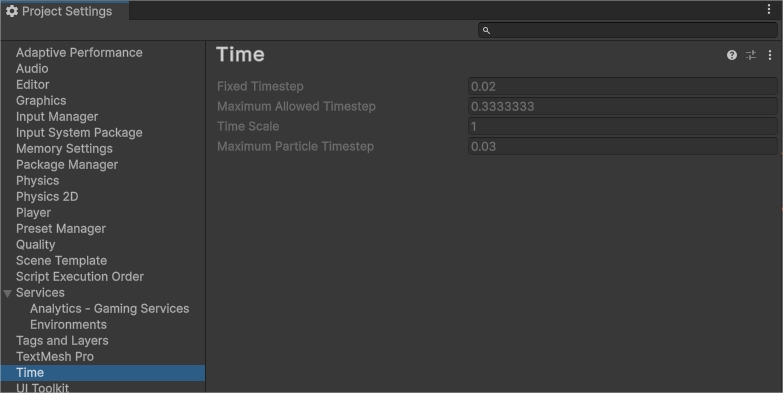

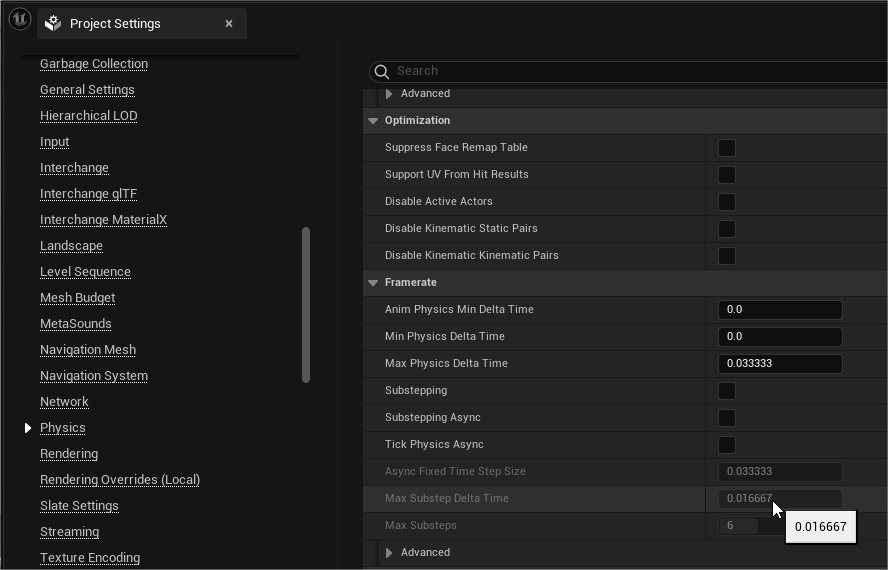

Fixed time step

• That fixed_time_step, how much should it be?
• It should be a config setting, every game has different requirements

• Important: the fixed update is only relevant for physics and networking

_{https://docs.unity3d.com/Manual/ExecutionOrder.html}

Update method

• The game maintains a collection of objects (often called "game objects" or "actors")
• Every frame the update method is called on those objects.

void scene::update()
{
  for (auto object : m_objects)
  {
    object->update();
  }
}

Update method

while(true) {
  int i = 0;
  // move right
  for(; i < 100; ++i) skeleton.set_x(i);
  // move left
  for(; i >= 0; --i) skeleton.set_x(i);
}

int i = 0;
bool is_walking_left = false;

void update()
{
  if(is_walking_left)
  {
    i--;
    if(i == 0) is_walking_left = false
  }
  else
  {
    i++;
    if(i == 100) is_walking_left = true;
  }
  skeleton.set_x(i);
}

The state pattern comes into view here

Update method

That is one of the advantages of coroutines in Unity

private IEnumerator DoPatrol()
{
  float direction = 1.0f;
  while(true)
  {
    for(int i = 0; i < 100; ++i)
    {
      skeleton.transform.position += direction * Vector3.right;
      yield return null;
    }
    direction = -direction;
  }
}

_{https://docs.unity3d.com/Manual/Coroutines.html}

Update order?

Be aware of interdependencies

• If object A comes before B in the update list.
• When A updates it sees B’s old state
• But when B updates it sees A’s new state

Example: If object C is the camera and object E is the player...

Solution?

• Double Buffer pattern
• LateUpdate method

Deleting objects

What happens when one object removes another in its Update?

Deleting objects

What happens when one object removes another in its Update?

• Don’t remove them until all have been updated, but “mark” as dead.
• Delete them after all updates have been finished.

Delta time?

Do we pass the deltaTime to the Update method? (as we have seen in the game loop pattern)

void update(float delta_time)
{
  if(is_walking_left) {
    i--;
    if(i == 0) is_walking_left = false
  }
  else {
    i++;
    if(i == 100) is_walking_left = true;
  }
  skeleton.set_x(i * delta_time);
}

This is the approach chosen by Unreal

void SomeActor::Tick(float DeltaTime)
{
  Super::Tick(DeltaTime);
  // code
}

Delta time?

You could use a singleton, as for example happens in Unity:

private IEnumerator DoPatrol()
{
  float direction = 1.0f;
  while(true)
  {
    for(int i = 0; i < 100; ++i)
    {
      skeleton.transform.position += direction * Vector3.right * Time.deltaTime;
      yield return null;
    }
    direction = -direction;
  }
}

Advantage? You can use it in other places than the Update method as well (as in the above example).
_{Note: I wrote singleton with a lower case s}

Update method

On what objects do we call this Update method?

namespace dae
{
  class Texture2D;
  class GameObject
  {
    Transform m_transform{};
    std::shared_ptr<Texture2D> m_texture{};
  public:
    virtual void Update();
    virtual void Render() const;

    void SetTexture(const std::string& filename);
    void SetPosition(float x, float y);

    GameObject() = default;
    virtual ~GameObject();
    GameObject(const GameObject& other) = delete;
    GameObject(GameObject&& other) = delete;
    GameObject& operator=(const GameObject& other) = delete;
    GameObject& operator=(GameObject&& other) = delete;
  };
}

Prefer composition over inheritance

Prefer composition over inheritance

Prefer composition over inheritance

Component

Prefer composition over inheritance. (Item 34 in "C++ coding standards" by Herb Sutter)

• The game world exists of “GameObjects”.
• Every game object has several components that govern an aspect of the Gameobject
  • RenderComponent does the rendering
  • AudioComponent plays the audio
  • PhysicsComponent takes care of the physics
  • ...
• Redirect the update method to the components.

Inheritance

Wait, inheritance is bad?
NO
Obviously not, we’ll be using a lot of inheritance while implementing the component pattern.

Choose the right tool for the right job.
Don’t use a swiss knife to hammer in a nail.

Inherit, not to reuse, but to be reused. (Item 37 in "C++ coding standards" by Herb Sutter)

Components in Unity

Unity is a state-of-the-art example

Several Components

• MeshRenderer
• RigidBody
• AudioSource
• Camera
• NavMeshAgent
• ...

Create your own by inheriting from MonoBehaviour

Component communication

• Via common state in the GameObject

  • Hard to tell what that data should be, if the components are unknown.
  • Order in which the components are updated becomes relevant
  • Component.transform

• Get the component you want to talk to from the GameObject

  • Simple and fast
  • Tightly coupled
  • GameObject.GetComponent<T>

• Sending messages to the GameObject

  • All components receive it.
  • GameObject.SendMessage

Components in Unreal

In Unreal we have this too:

• AActor is the game object class
• UActorComponent is the base component class

Several Components

• UCameraComponent
• UParticleSystemComponent
• UStaticMeshComponent
• ...

To get the component you want to talk to from the actor:

auto component =
  Cast<T>(GetOwner()->GetComponentByClass(T::StaticClass()));

Lots of common state

• USceneComponent* RootComponent
