Input

Remember we discussed the game loop

bool do_continue = true;
while(do_continue)
{
  do_continue = process_input();
  update();
  render();
}

We discussed that update(), render() is covered in Graphics Programming 1 & 2.
Today we discuss process_input()

Input

Comes from all kinds of devices

• Digital buttons
  • Down or Up, 0 or 1, circuit is open or closed.
• Analog Axes/Buttons
  • Range of values
    • Thumb RX -32768 -> 32768 (Xbox)
    • Trigger R 0 -> 255 (Xbox)
• Relative Axis
  • No defined center point, so no range possible
  • Delta position values (mouse for example)
• Accelerometers
  • Delta acceleration values (Wiimote, or VR controllers for example)
• Touch
  • Pressure ranges

Input polling

One way to process input is via "polling"

• Periodically read the current state of the device
  • Periodically: once per frame in our example
• Often game pads, joysticks
• On windows, this is what the XInput API provides
  • XInputGetState()

XINPUT_STATE state;
ZeroMemory(&state, sizeof(XINPUT_STATE));
DWORD dwResult = XInputGetState(i, &state);

XInput

typedef struct XINPUT_STATE {
    DWORD dwPacketNumber;
    XINPUT_GAMEPAD Gamepad;
} XINPUT_STATE

typedef struct XINPUT_GAMEPAD {
    WORD wButtons;
    BYTE bLeftTrigger;
    BYTE bRightTrigger;
    SHORT sThumbLX;
    SHORT sThumbLY;
    SHORT sThumbRX;
    SHORT sThumbRY;
} XINPUT_GAMEPAD

XInput

Check for example if Gamepad button A is pressed:

bool IsButtonAPressed(const XINPUT_GAMEPAD& gamepad)
{
  return ((gamepad.wButtons & XINPUT_GAMEPAD_A) != 0);
}

Better, somewhere during process_input():

CopyMemory(&previousState, &currentState, sizeof(XINPUT_STATE));
ZeroMemory(&currentState, sizeof(XINPUT_STATE));
XInputGetState(m_controllerIndex, &currentState);

auto buttonChanges = currentState.Gamepad.wButtons ^ previousState.Gamepad.wButtons;
buttonsPressedThisFrame = buttonChanges & currentState.Gamepad.wButtons;
buttonsReleasedThisFrame = buttonChanges & (~currentState.Gamepad.wButtons);

XInput

Which enables us to implement the following:

bool IsDownThisFrame(unsigned int button) const
{
  return buttonsPressedThisFrame & button;
}

bool IsUpThisFrame(unsigned int button) const
{
  return buttonsReleasedThisFrame & button;
}

bool IsPressed(unsigned int button) const
{
  return currentState.Gamepad.wButtons & button;
}

XInput

CopyMemory(&previousState, &currentState, sizeof(XINPUT_STATE));
ZeroMemory(&currentState, sizeof(XINPUT_STATE));
XInputGetState(m_controllerIndex, &currentState);

(currentState.Gamepad.wButtons & 16) == 16
(currentState.Gamepad.wButtons & 68) == 68

XInput

auto buttonChanges = currentState.Gamepad.wButtons ^ previousState.Gamepad.wButtons;
buttonsPressedThisFrame = buttonChanges & currentState.Gamepad.wButtons;
buttonsReleasedThisFrame = buttonChanges & (~currentState.Gamepad.wButtons);

XInput

Why the hassle? So that instead of

bool IsDownThisFrame(unsigned int button) const
{
  return ((currentState.Gamepad.wButtons & button) != 0) &&
    ((previousState.Gamepad.wButtons & button) == 0);
}

We can now write

bool IsDownThisFrame(unsigned int button) const
{
  return buttonsPressedThisFrame & button;
}

XInput

typedef struct XINPUT_STATE {
    DWORD dwPacketNumber;
    XINPUT_GAMEPAD Gamepad;
} XINPUT_STATE

typedef struct XINPUT_GAMEPAD {
    WORD wButtons;
    BYTE bLeftTrigger;
    BYTE bRightTrigger;
    SHORT sThumbLX;
    SHORT sThumbLY;
    SHORT sThumbRX;
    SHORT sThumbRY;
} XINPUT_GAMEPAD

Deadzones you say?

#define WIN32_LEAN_AND_MEAN
#include <windows.h>
#include <XInput.h>
#include <iostream>
#include <thread>

#pragma comment(lib, "xinput.lib")

int main()
{
    XINPUT_STATE currentState{};
    int controllerIndex{};

    while (true)
    {
        auto t = std::chrono::high_resolution_clock::now();

        ZeroMemory(&currentState, sizeof(XINPUT_STATE));
        XInputGetState(controllerIndex, &currentState);

        std::cout << "\rsThumbLX: " << currentState.Gamepad.sThumbLX
          << " - sThumbRX: " << currentState.Gamepad.sThumbRX;

        if (currentState.Gamepad.wButtons & XINPUT_GAMEPAD_B)
            break;

        auto t2 = std::chrono::high_resolution_clock::now() - t;
        t += std::chrono::milliseconds(16) - t2; // we want ~60 fps
        std::this_thread::sleep_until(t);
    }
}

Input via interrupts

Interrupts – IRQ

• When state of a device changes (p.ex. a mouse has moved) an interrupt request signal is sent to the CPU
• Main program is halted shortly, input data is processed (ISR), main continues and can work with the received data.
• When we process input, we process the received interrupts since the last frame one by one

// Main message loop:
while (GetMessage(&msg, nullptr, 0, 0)) {
    if (!TranslateAccelerator(msg.hwnd, hAccelTable, &msg)) {
        TranslateMessage(&msg);
        DispatchMessage(&msg);
    }
}

Input via interrupts

Interrupts – IRQ

• When state of a device changes (p.ex. a mouse has moved) an interrupt request signal is sent to the CPU
• Main program is halted shortly, input data is processed (ISR), main continues and can work with the received data.
• When we process input, we process the received interrupts since the last frame one by one

bool dae::InputManager::ProcessInput() {
  SDL_Event e;
  while (SDL_PollEvent(&e)) {
    if (e.type == SDL_QUIT) {
      return false;
    } else if (e.type == SDL_KEYDOWN) {

    } elseif (e.type == SDL_MOUSEBUTTONDOWN) {

    }
    // etc...
  }
  return true;
}

Input

Wireless input devices

• Often via Bluetooth
• Need a separate thread to receive the data send by the device over the network
• And to send data back to the device (like sound and rumble data)
• Often abstracted away behind an API Layer.

Problem statement

if(is_pressed(BUTTON_Y))
  Jump();
else if (is_pressed(BUTTON_X))
  Firegun();
else if (is_pressed(BUTTON_A))
  SwapWeapon();
else if (is_pressed(BUTTON_B))
  Crouch();

What's wrong with this code?
How can we improve it?

Command

class Command
{
  public:
   virtual ~Command() = default;
   virtual void Execute() = 0;
}

class Jump : public Command
{
  public:
    void Execute() override { Jump(); }
}

class Fire : public Command
{
  public:
    void Execute() override { Fire(); }
}

Command

Even better:

class GameActorCommand : public Command
{
  GameActor* m_actor;
protected:
  GameActor* GetGameActor() const { return m_actor; }
public:
  GameActorCommand(GameActor* actor);
  virtual ~GameActorCommand();
}

class Fire : public GameActorCommand {
public:
  void Execute() override
  {
    GetGameActor()->Fire();

    // additional code is possible too, of course
  }
}

Command

These commands need to be registered with the Input manager

• The input manager keeps track of all active commands
• Checks if the input for the command has been executed by the user
• Calls the Execute method on the registered command
• Don't forget to unregister!

Mapping the input to the commands is up to you.

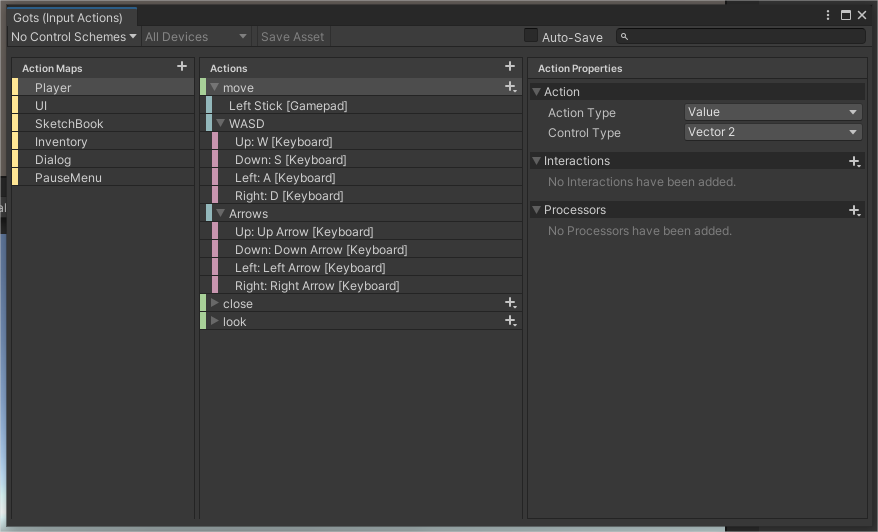

Actions in Unity

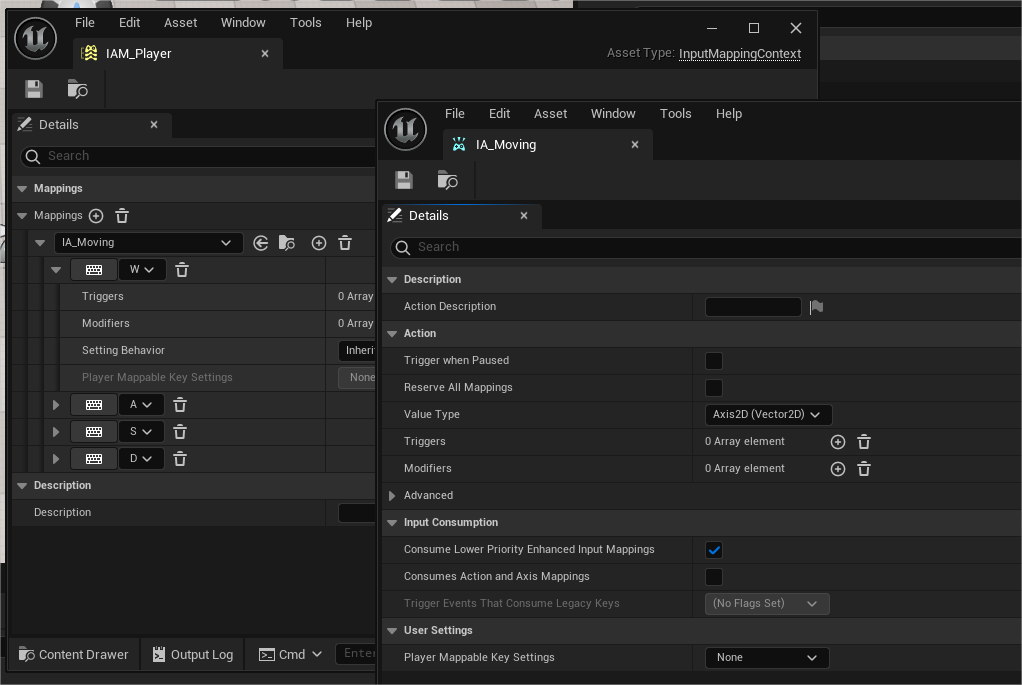

Actions in Unreal

Actions

Actions is the mapping of some input to an ID. This id then gets mapped to a certain command or function.

if (auto EnhancedInputComponent = Cast<UEnhancedInputComponent>(InputComponent))
{
  EnhancedInputComponent->BindAction(MoveAction, ETriggerEvent::Triggered, this,
    &AMyPlayerController::OnMove);
}

Command

Editors (not games) often (always?) work with stacked commands, to enable Undo/Redo functionality.

class EditorCommand : public Command
{
  public:
   virtual ~EditorCommand() = default;
   virtual void Undo() = 0;
}

This is how virtually all commands in software works... Of course, in-game actions don't often need an Undo, so make a distinction!

Success & Failure

The command pattern allows to have command "state"

• Success - the command was executed successfully
• Failed - the command returned an error
• Canceled - the command is not executed for some reason
• It can keep track of how many times it has been executed

Pimpl

Is a C++ pattern/idiom

Remove compilation dependencies on internal class implementations and improve compile times

Item #43 from C++ Coding Standards by Herb Sutter: “Pimpl judiciously”

Advantages

• Faster compilation times
  • (easier project setup too)
• Avoids ambiguity

_{https://cpppatterns.com/patterns/pimpl.html}

Example

The Renderer - we want to dynamically choose between DirectX and OpenGL - do you see the problem?

class Renderer abstract
{
public:
    virtual void RenderTriangles(
      float* verts, int* indices) = 0;
};

#include "Renderer.h"
#include <SDL.h>

class OpenGLRenderer : public Renderer
{
public:
    void RenderTriangles(
      float* verts, int* indices) override;
private:
    SDL_Texture* m_pRenderTexture;
};

#include "Renderer.h"
#include <d3d11.h>

class DirectXRenderer : public Renderer
{
public:
    void RenderTriangles(
      float* verts, int* indices) override;
private:
    ID3D11Texture2D* m_pRenderTexture;
};

Example

Let's apply Pimpl.

#include "Renderer.h"

class OpenGLRenderer : public Renderer
{
    class OpenGLRendererImpl;
    OpenGLRendererImpl* m_pImpl;
public:
    void RenderTriangles(
      float* verts, int* indices) override;
};

#include "OpenGLRenderer.h"
#include <SDL.h>

class OpenGLRenderer::OpenGLRendererImpl
{
    SDL_Texture* m_pRenderTexture;
  public:
    void DoRenderTriangles(
      float* verts, int* indices);
};

void OpenGLRenderer::OpenGLRendererImpl::
  DoRenderTriangles(float* verts, int* indices) {
    // the actual implementation
  }

void OpenGLRenderer::RenderTriangles(
  float* verts, int* indices) {
    m_pImpl->DoRenderTriangles(verts, indices);
}
